Cropico DO5002-930078-Digital microhmmeter with temperature compensation

– High accuracy 0.03%, 6 ranges, 200milliohms to 30kilohms
– Adjustable current ranges,10uA-100mA
– Fast sampling (0.02Hz) at 10u ohm resolution

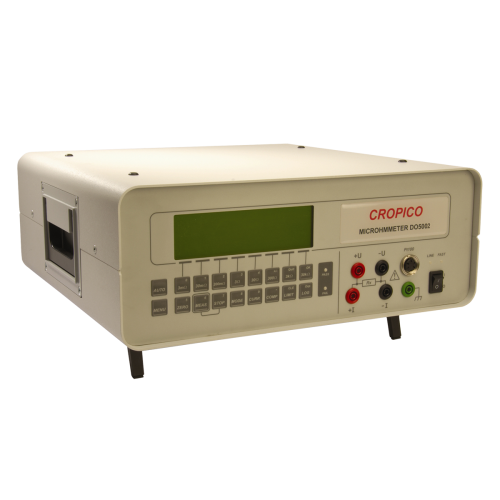

Cropico DO5002

The DO5002 micro ohmmeter is a truly remarkable instrument and ideally suited for laboratory testing of samples, for production line testing, and with the addition of the interfaces RS232 / IEEE-488 or PLC, the DO5002 micro ohmmeter may be remotely controlled and integrated into an automated testing system.

The DO5002 micro ohmmeter encompasses all the features required of an ohmmeter in one instrument. Programmable measuring current in 100 steps ensures that the DO5002 is suitable for all your applications. Automatic temperature compensation and Hi / Lo limits permits sorting of components with the minimum of fuss. Statistical analysis of these values allows you to display the max/min /average values as well as peak to peak and standard deviation. The DO5002 will even calculate cable lengths in ohms/metre.

Technical Specifications

Technical specification
Measurement	4 wire eliminates lead resistance
Display	LCD Graphics panel with backlight 30,000 count
Ranges	Manual / Automatic
Auto Zero	Value Average Hold
Systems Interface	RS232 fitted as standard, PLC option
Terminals	4mm safety sockets
Working Temperature	0°C … 45 °C
Storage Temperature	-10°C…+60°C
Mains Supply	230 V ±10%, 115 V ±10% 47…63Hz
Safety	IEC 1010 Class 1
Dimensions	339 x 324 x 131mm (W D H)
Weight	8.5kg
Accessories	Supplied with RS232 interface, mains cord, handbook and certificate of conformity
