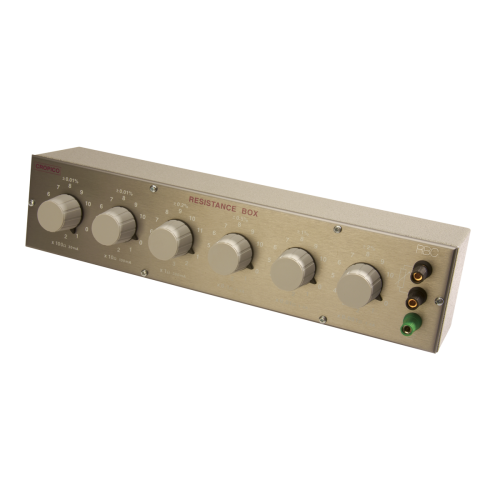

Cropico RBC Series

High current decade box with versatile wide ohm range

– 5 Watts per Coil
– Accuracy 5%
– 0.1Ω to 111,111Ω

Cropico RBC High Dissipation

RBC High Dissipation Resistance Decade 5 Watts per coil

The RBC Series is a robust range of high dissipation resistance decades available in 5 or 6 decade versions and suitable for applications where reasonably precise and stable adjustable loads are required.

Constructed using the same high quality components as our other resistance decades and housed in a light alloy ventilated case, the RBC Series will withstand the most arduous use and give many years service. All parts are fully serviceable and can be repaired in our workshop should the more enthusiastic user damage the units with high overloads.

Technical Specifications

RBC5-A
Decades	5
Total resistance	11,111 ohm
Resolution	0.1ohm
Resistance per Steps in ohms	10
Accuracy %	±5%
Max Current in Amps	0.7

RBC6-A
RBC6-A	6
Total resistance	111,111 ohm
Resolution	0.1ohm
Resistance per Steps in ohms	0.1
Accuracy %	±10%
Max Current in Amps	7

RBC5-B
Decades	5
Total resistance	111,110 ohm
Resolution	1ohm
Resistance per Steps in ohms	1
Accuracy %	±10%
Max Current in Amps	2.2
