Cropico DO5001-930077-Digital micro ohmmeter with rechargeable batteries and temperature compensation

– High accuracy 0.03%, 8 ranges, 3milliohms to 30kilohms
– Adjustable current ranges 10uA-10A
– Mains / rechargeable battery operation

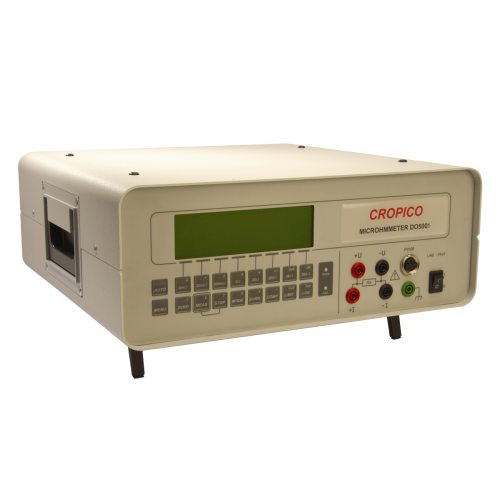

Cropico DO5001

The DO5001 micro ohmmeter encompasses all the features required of an ohmmeter in one instrument. Automatic temperature compensation and Hi / Lo limits permits sorting of components with the minimum of fuss. All these options are included in the basic unit as well as a data logging function which stores up to 4,000 readings with date and time stamp.

Statistical analysis of these values allows you to display the max/min/average values as well as peak to peak. The DO5001 micro ohmmeter is a truly remarkable instrument and ideally suited for laboratory testing of samples, for production line testing, fast measurement mode which measures at 50 measurements per second.

For applications where portability is required the model 5001 may be powered either from the mains or by the inbuilt rechargeable batteries.

Technical Specifications

Technical specification
Measurement	4 wire eliminates lead resistance
Display	LCD Graphics panel with backlight 30,000 count
Ranges	Manual / Automatic
Auto Zero	Value Average Hold
Systems Interface	RS232 fitted as standard, PLC option
Terminals	4mm safety sockets
Working Temperature	0°C … 45°C
Storage Temperature	-10°C…+60°C
Mains Supply	230 V ±10%, 115 V ±10% 47…63Hz
Safety	IEC 1010 Class 1
Dimensions	339 x 324 x 131mm (W D H)
Weight	8.5kg
Accessories	Supplied with RS232 interface, mains cord, handbook and certificate of conformity

Download 4
