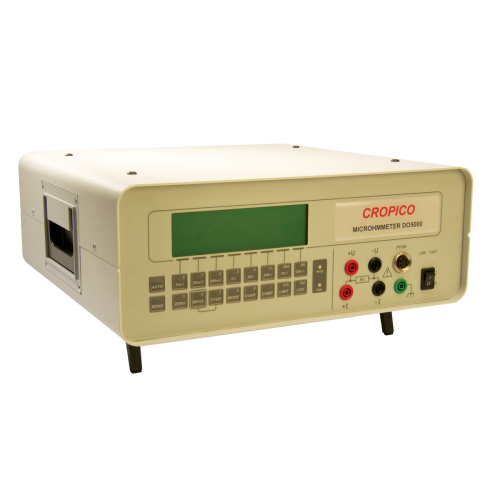

The DO5000 microhmmeter is a truly remarkable instrument and ideally suited for laboratory testing of samples, for production line testing, and with the addition of the interfaces RS232 or PLC, the DO5000 may be remotely controlled. Automatic temperature compensation and Hi / Lo limit permits sorting of components with the minimum of fuss. All these options are included in the basic unit as well as a data logging function which stores up to 4000 readings with date and time stamp. Statistical analysis of these values allows you to display the max / min /average values as well as peak to peak and standard deviation. The DO5000 will even calculate cable lengths in ohms/metre.
| Technical specification |
|---|
| Measurement | 4 wire eliminates lead resistance |
| Display | LCD Graphics panel with backlight 30,000 count |
| Ranges | Manual / Automatic |
| Auto Zero | Value Average Hold |
| Systems Interface | RS232 fitted as standard, PLC option |
| Terminals | 4mm safety sockets |
| Working Temperature | 0°C … 45°C |
| Storage Temperature | -10°C…+60°C |
| Mains Supply | 230V ±10%, 115V ±10% 47…63Hz |
| Safety | IEC 1010 Class 1 |
| Dimensions | 339 x 324 x 131mm (W D H) |
| Weight | 8.5kg |
| Accessories | Supplied with RS232 interface, mains cord, handbook and certificate of conformity |
